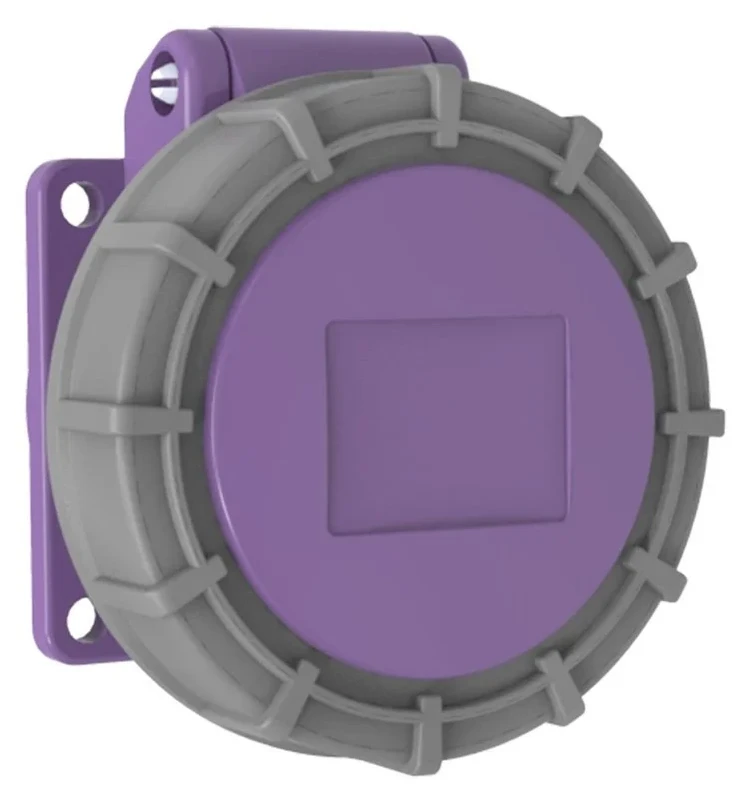

32A 2P 24V IP67 CEE Panel-Mounted Socket (One-Piece)

Bemis 32A 2P 24V IP67 CEE Panel-Mounted Socket (One-Piece) (BC1-3102-7414) is a CEE (IEC 60309 type) panel-mounted socket-outlet fixed to enclosures, machines or equipment. With 32A rated current and 2 poles (no earth) contact arrangement, it is rated 24V / 50Hz - 60Hz for extra-low-voltage (ELV) applications. IP67 is fully dust-tight and withstands temporary immersion in water. Housing material is Polyamide 6 and contacts are MS 58 (brass).

Rated Current

32A 2P

Rated Voltage

24V

Poles

2P

Frequency

50Hz - 60Hz

IP Rating

IP67

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
