32A 3P 24V IP67 CEE Connector

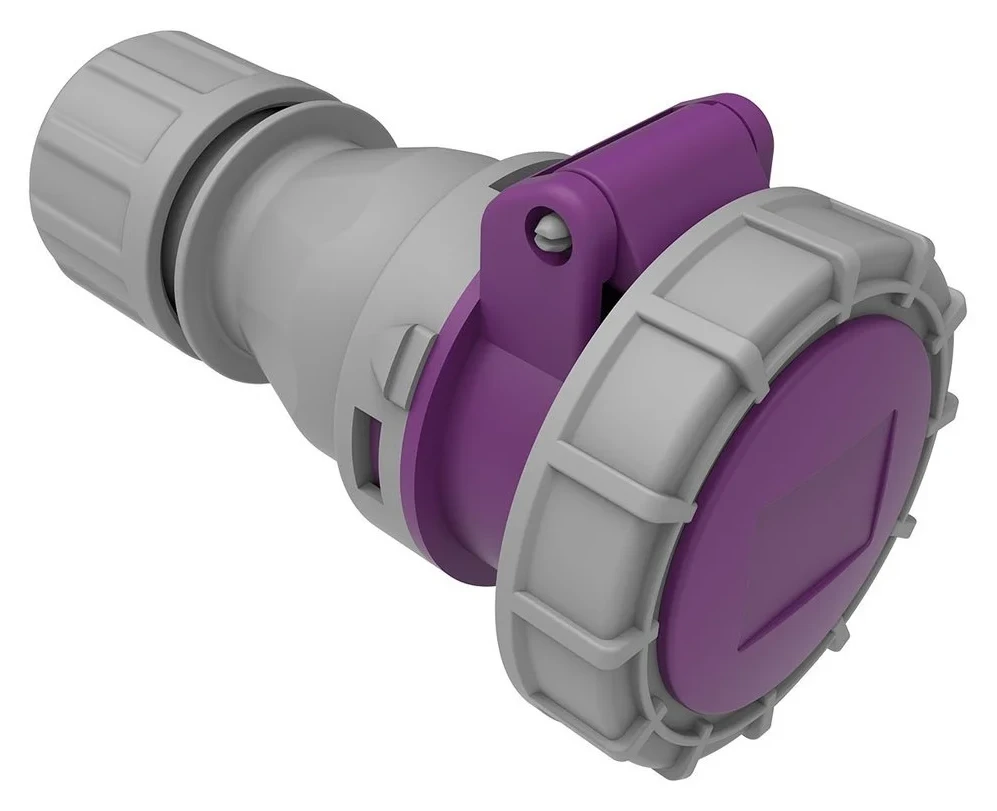

Bemis 32A 3P 24V IP67 CEE Connector (BC1-3103-7312) is a CEE (IEC 60309 type) connector (portable socket-outlet) fitted to the end of a flexible cable to create a mobile power point. With 32A rated current and 3 poles (no earth) contact arrangement, it is rated 24V / 50Hz - 60Hz for extra-low-voltage (ELV) applications. IP67 is fully dust-tight and withstands temporary immersion in water. Housing material is Polyamide 6 and contacts are MS 58 (brass).

Rated Current

32A 3P

Rated Voltage

24V

Poles

3P

Frequency

50Hz - 60Hz

IP Rating

IP67

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
