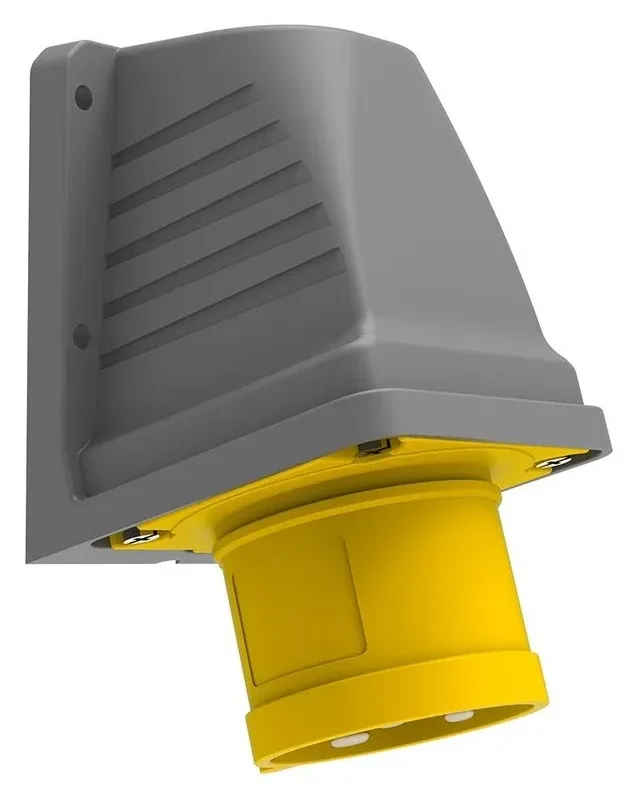

32A 3P IP44 CEE 90° Angled Wall-Mounted Inlet

Bemis 32A 3P IP44 CEE 90° Angled Wall-Mounted Inlet (BC1-3303-2236) is a CEE (IEC 60309 type) wall-mounted inlet used to take supply at a fixed surface point. With 32A rated current and 2 poles + earth (3-pin) contact arrangement, it is rated 110V-150V / 50Hz - 60Hz for 110 V systems. IP44 protects against solid objects larger than 1 mm and against water splashing from any direction. Housing material is Polyamide 6 and contacts are MS 58 (brass). The 4h clock position shows where the earth contact sits relative to the keyway and prevents plugs and sockets of different voltage or frequency systems from mating.

Rated Current

32A 3P

Rated Voltage

110V-150V

Poles

2P+E

Frequency

50Hz - 60Hz

IP Rating

IP44

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
