32A 3P IP44 CEE Connector

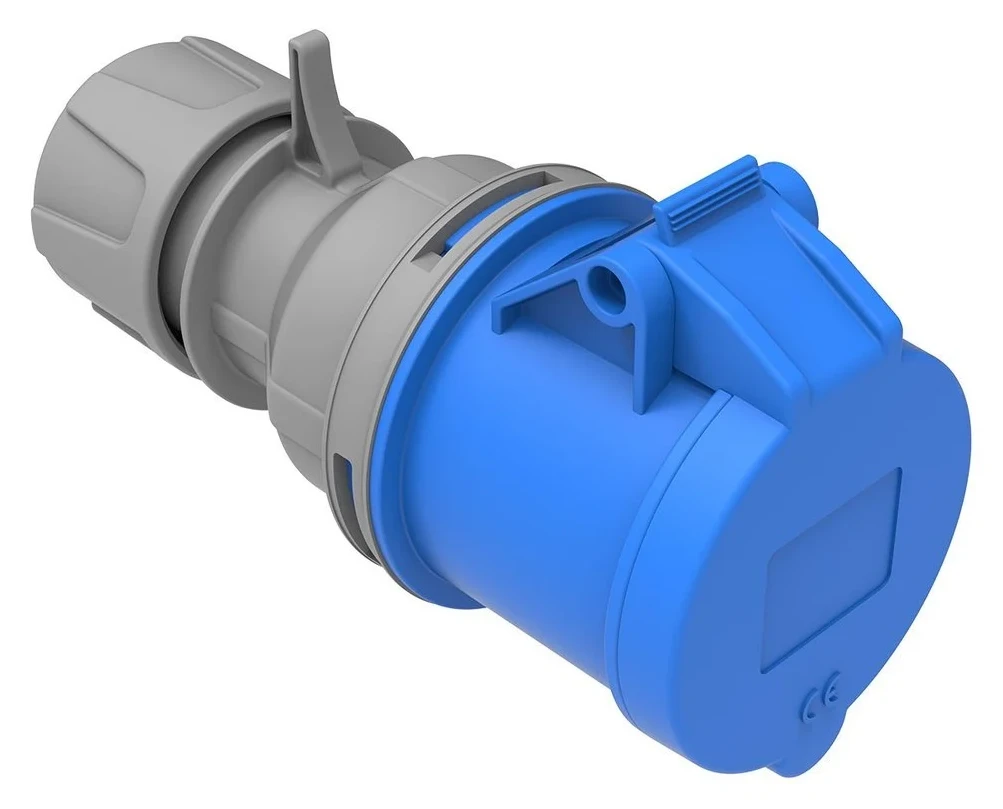

Bemis 32A 3P IP44 CEE Connector (BC1-3403-2312) is a CEE (IEC 60309 type) connector (portable socket-outlet) fitted to the end of a flexible cable to create a mobile power point. With 32A rated current and 2 poles + earth (3-pin) contact arrangement, it is rated 220V-250V / 50Hz - 60Hz for single-phase systems. IP44 protects against solid objects larger than 1 mm and against water splashing from any direction. Housing material is Polyamide 6 and contacts are MS 58 (brass). The 6h clock position shows where the earth contact sits relative to the keyway and prevents plugs and sockets of different voltage or frequency systems from mating.

Rated Current

32A 3P

Rated Voltage

220V-250V

Poles

2P+E

Frequency

50Hz - 60Hz

IP Rating

IP44

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
