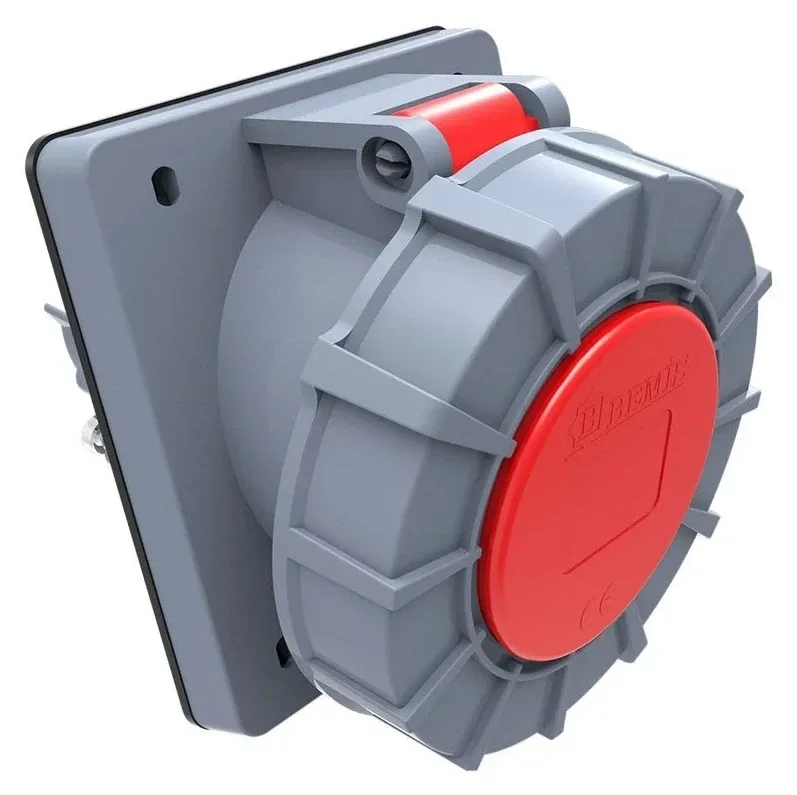

32A 5P IP67 CEE 45° Angled Panel-Mounted Socket

Bemis 32A 5P IP67 CEE 45° Angled Panel-Mounted Socket (BC1-3505-7420) is a CEE (IEC 60309 type) panel-mounted socket-outlet fixed to enclosures, machines or equipment. With 32A rated current and 3 phases + neutral + earth (5-pin) contact arrangement, it is rated 380V-450V / 50Hz - 60Hz for three-phase systems. IP67 is fully dust-tight and withstands temporary immersion in water. Housing material is Polyamide 6 and contacts are MS 58 (brass). The 6h clock position shows where the earth contact sits relative to the keyway and prevents plugs and sockets of different voltage or frequency systems from mating.

Rated Current

32A 5P

Rated Voltage

380V-450V

Poles

3P+N+E

Frequency

50Hz - 60Hz

IP Rating

IP67

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
