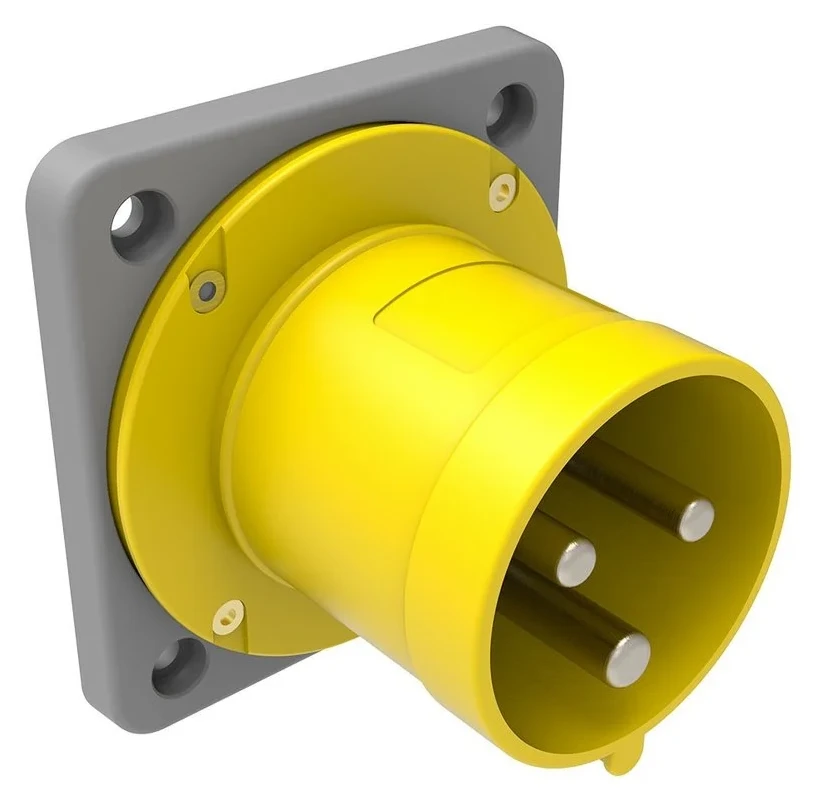

63A 3P IP44 CEE Appliance Inlet

Bemis 63A 3P IP44 CEE Appliance Inlet (BC1-4303-2114) is a CEE (IEC 60309 type) appliance inlet fixed to equipment or enclosures and supplied through a connector. With 63A rated current and 2 poles + earth (3-pin) contact arrangement, it is rated 110V-150V / 50Hz - 60Hz for 110 V systems. IP44 protects against solid objects larger than 1 mm and against water splashing from any direction. Housing material is Polyamide 6 and contacts are MS 58 (brass). The 4h clock position shows where the earth contact sits relative to the keyway and prevents plugs and sockets of different voltage or frequency systems from mating.

Rated Current

63A 3P

Rated Voltage

110V-150V

Poles

2P+E

Frequency

50Hz - 60Hz

IP Rating

IP44

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
