Metal Cable Reels

Metal Cable Reel – IP67, 40m

Product Code

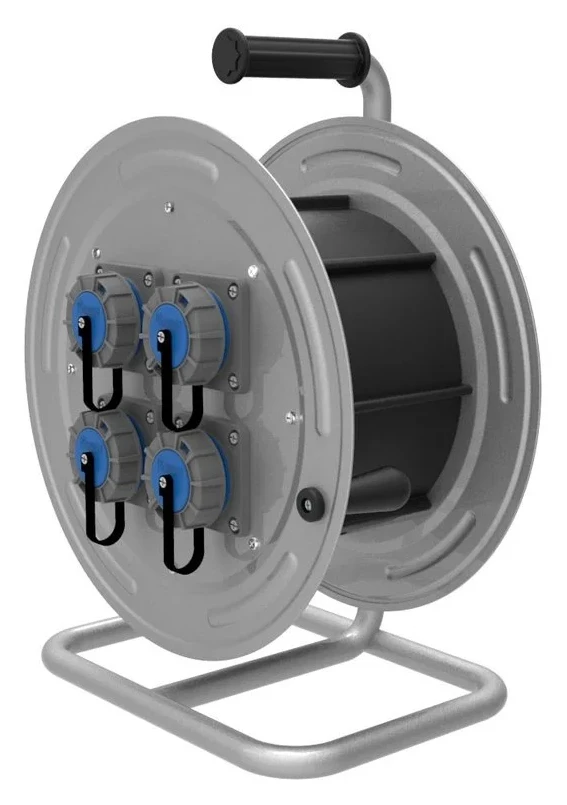

Bemis Metal Cable Reel (BM4-5431-0000) is a cable reel used to carry cable neatly and create an extension line on site. Key data – cable capacity: 40m; cable type: 5x2,5mm; socket option: With sockets. IP67 is fully dust-tight and withstands temporary immersion in water. Housing material is 1mm cold-rolled sheet steel.

IP Rating
IP67
Pieces Per Box
1
Socket Option
With sockets
Cable Option
Without cable
Cable Type
5x2,5mm
Cable Capacity
40 m cable capacity
Download Datasheet

Manufactured in accordance with IEC 60309 and related safety standards.

CE EAC ISO 9001 TÜV NORD UkrSEPRO Yerli Üretim

Technical Specifications

Mechanical & Material
IP RatingIP67
Housing Material1mm cold-rolled sheet steel
Packaging & Logistics
Pieces Per Box1
General
Socket OptionWith sockets
Cable OptionWithout cable
Cable Type5x2,5mm
Cable Capacity40 m cable capacity

Socket Configuration

4 Sockets
Rated Current16A
Rated Voltage220V-250V
Poles2P+E
Frequency50Hz - 60Hz
