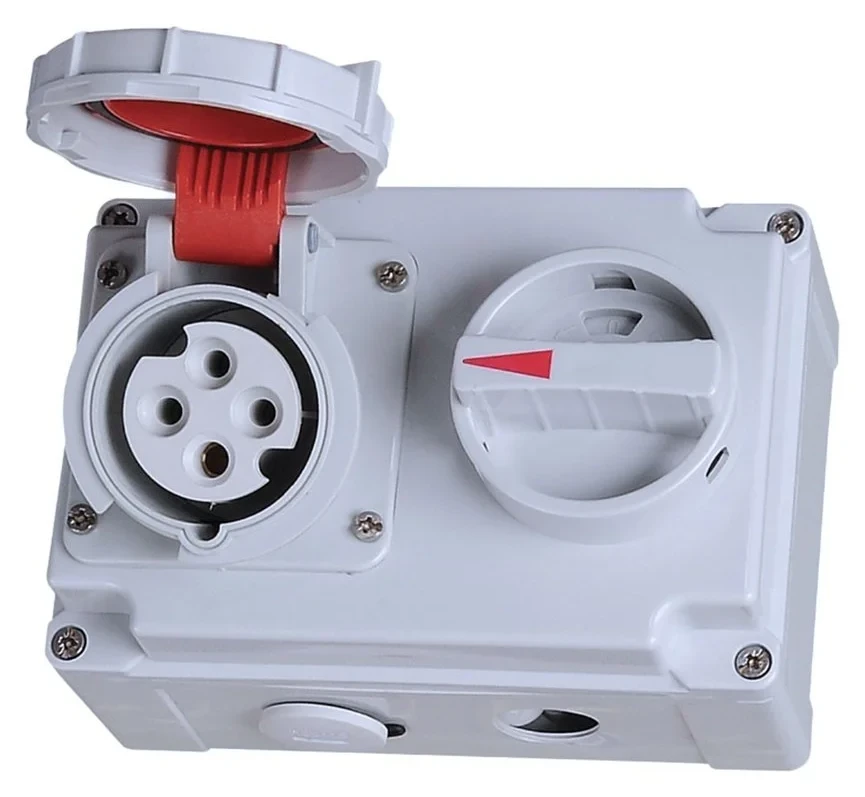

16A 4P IP67 CEE Switched Interlocked Straight Wall-Mounted Socket

Bemis 16A 4P IP67 CEE Switched Interlocked Straight Wall-Mounted Socket (BC1-1504-7560) is a CEE (IEC 60309 type) switched interlocked socket; the integrated switch prevents energising without a plug and withdrawing the plug while energised. With 16A rated current and 3 phases + earth (4-pin) contact arrangement, it is rated 380V-450V / 50Hz - 60Hz for three-phase systems. IP67 is fully dust-tight and withstands temporary immersion in water. Housing material is Polyamide 6 and contacts are MS 58 (brass).

Rated Current

16A 4P

Rated Voltage

380V-450V

Poles

3P+E

Frequency

50Hz - 60Hz

IP Rating

IP67

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
