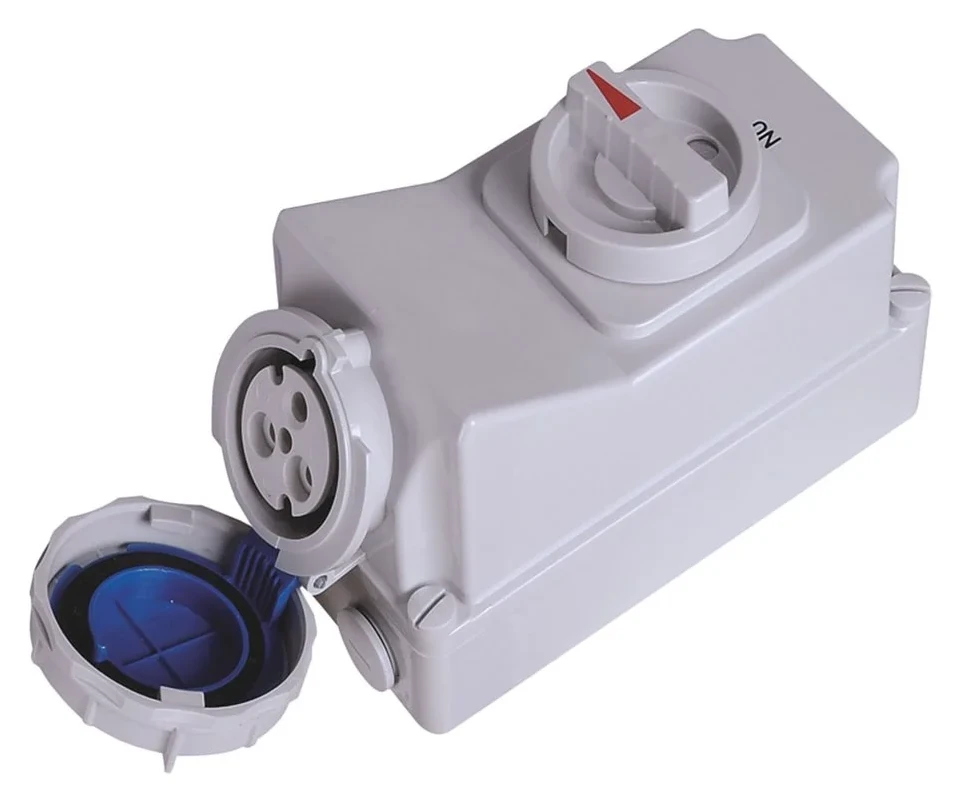

32A 3P IP67 CEE Switched Interlocked 90° Angled Wall-Mounted Socket

Bemis 32A 3P IP67 CEE Switched Interlocked 90° Angled Wall-Mounted Socket (BC1-3403-7540) is a CEE (IEC 60309 type) switched interlocked socket; the integrated switch prevents energising without a plug and withdrawing the plug while energised. With 32A rated current and 2 poles + earth (3-pin) contact arrangement, it is rated 220V-250V / 50Hz - 60Hz for single-phase systems. IP67 is fully dust-tight and withstands temporary immersion in water. Housing material is Polyamide 6 and contacts are MS 58 (brass).

Rated Current

32A 3P

Rated Voltage

220V-250V

Poles

2P+E

Frequency

50Hz - 60Hz

IP Rating

IP67

Housing Material

Polyamide 6

Manufactured in accordance with IEC 60309 and related safety standards.
